4 Monitor Workspace: The Ultimate Setup
Setting up a four-monitor system can drastically enhance your productivity and make you look like the smartest person in the room. Whether you’re a multitasking professional, a gamer, or a creative. Here’s a comprehensive guide that will help you create an efficient and ergonomic quad-monitor setup.

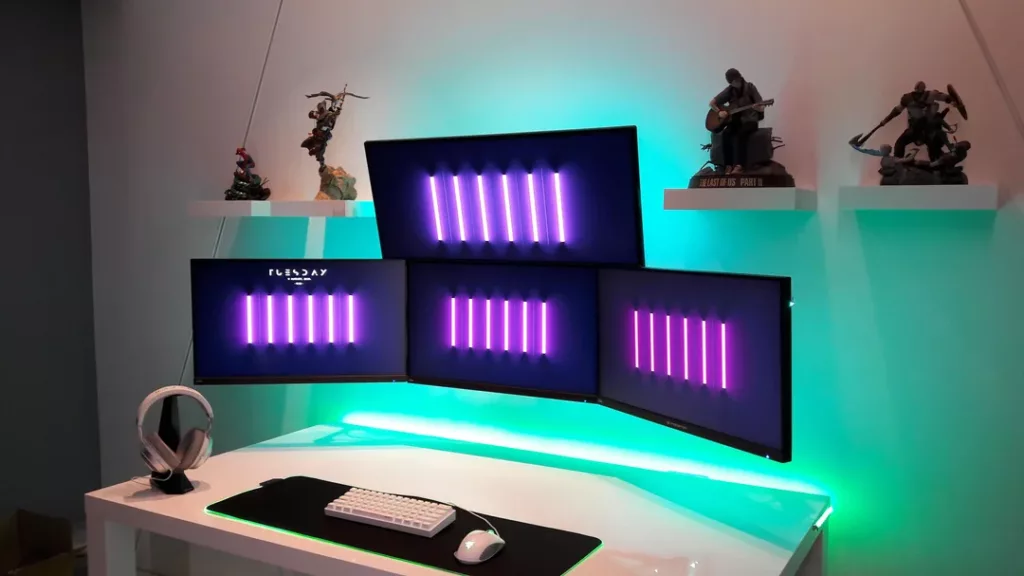

Quad monitor setup by Tartaruga
1. Hardware Requirements
Graphics Card: Ensure your graphics card supports four monitors and has the necessary ports (HDMI, DisplayPort, or VGA). High-end GPUs often support multiple displays seamlessly, but mid-range GPUs may require additional adapters or docking stations (Tech News Today) (Improve Workspace).
Monitors: Choose monitors based on your primary tasks. For instance:
- Coding and Programming: 17-24 inches, HD or UHD for clear text rendering.
- Image and Video Editing: 22-27 inches, UHD with high color accuracy.
- Gaming: 27-32 inches, HD with high contrast and color quality.
2. Connecting Your Monitors

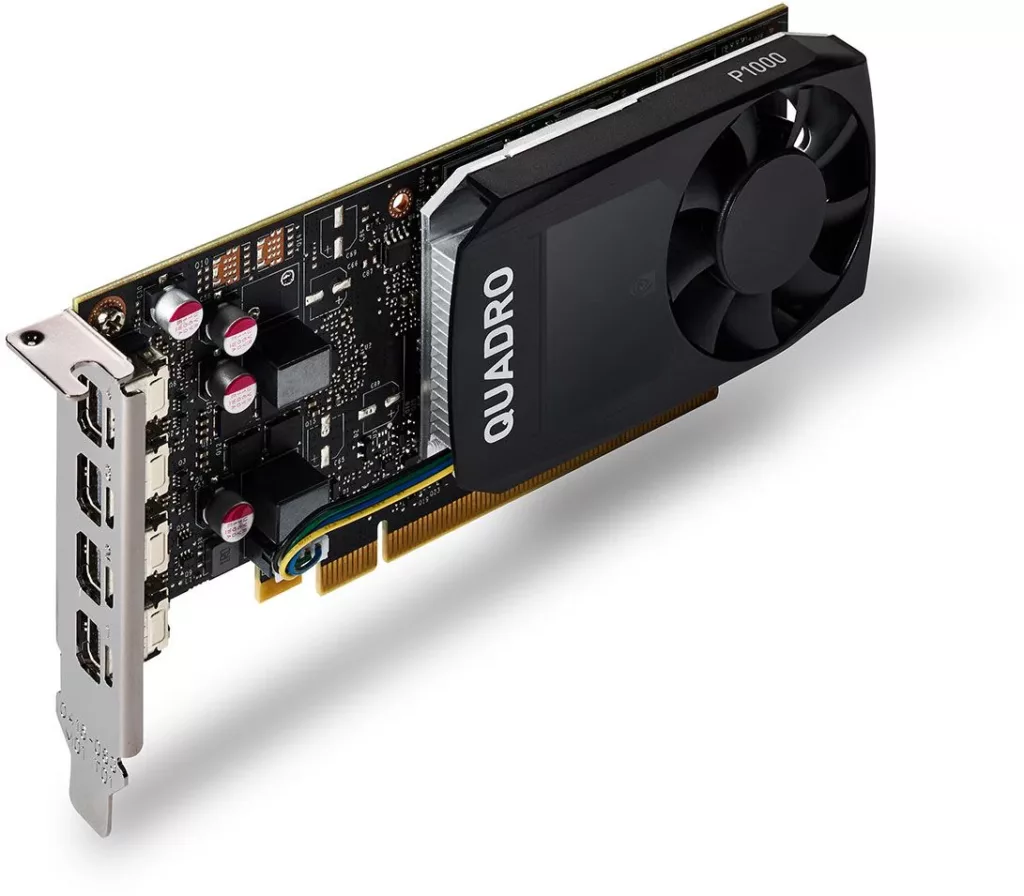

Direct Connection: If your GPU has four output ports, connect each monitor directly. This is the simplest method but requires a compatible graphics card.
Daisy Chaining: Use DisplayPort to connect monitors in series. This requires monitors that support DisplayPort In and Out and a Multi-Stream Transport (MST) driver.

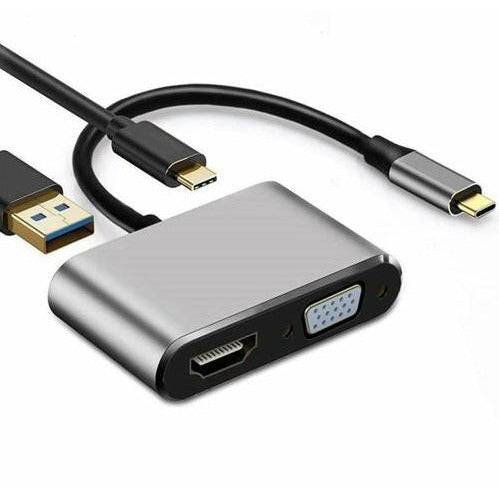

USB-video Adapters: Convert USB-C ports to video outputs using adapters, especially if your GPU lacks sufficient ports. Ensure Thunderbolt compatibility for optimal performance.
Docking Stations: Ideal for laptops or compact desktops, docking stations provide additional ports and simplify cable management.
3. Configuring Your Monitors
Windows 10 Setup:
Scaling: Adjust scaling for readability. Go to Settings > System > Display, then select the monitor and choose the appropriate scale.

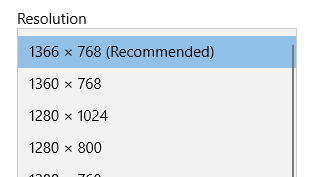

Resolution: Ensure all monitors are set to their native resolution. Go to Settings > System > Display > Resolution.
Orientation: Configure landscape or portrait mode depending on your workflow.

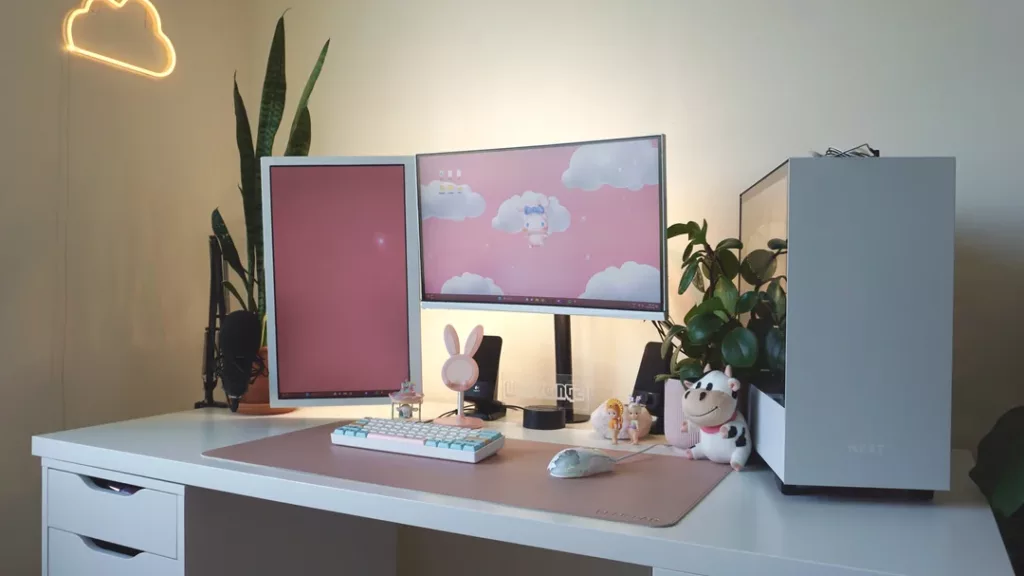

Portrait and Landscape display monitors by libbytingz
4. Ergonomics and Layout
Monitor Positioning:
- Align monitors at eye level to reduce neck strain.
- Keep the main monitor directly in front of you with others angled for easy viewing.
- Use monitor arms or stands to adjust height and tilt.
Example image by Highoctane0_Reddit
Desk Setup:
- Horizontal Setup: Monitors side-by-side for a wide view.
- L-shaped Desk: Utilizes corner space effectively, suitable for multitasking.
- Stacked Setup: Central monitors stacked with side monitors for focused work.
- Quadruple Display: Two monitors above and two below for maximum screen real estate.
Example image by racerz634
5. Cable Management
Effective cable management keeps your workspace tidy and prevents clutter:
- Use cable ties or clips to organize cables.
- Route cables through monitor arms or desk grommets.
- Label cables for easy identification during re-configurations.

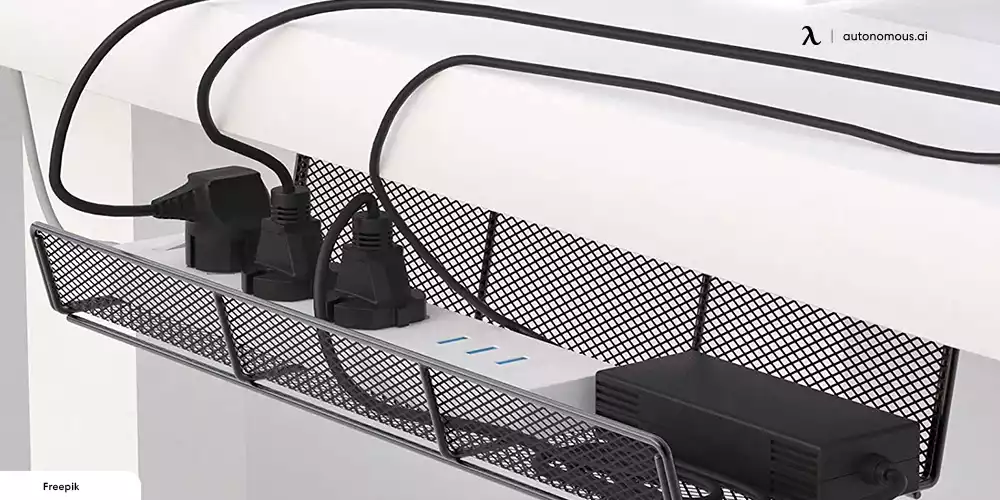

Image by autonomous.ai
6. Overcoming Challenges
Graphics Card Limitations: Ensure your GPU can handle four monitors. You might need to upgrade if it’s underpowered.
Software Compatibility: Some operating systems might have limitations. Ensure your OS supports multiple displays and consider third-party software for better management.
Power Supply: Adding multiple monitors increases power consumption. Ensure your power supply can handle the load to avoid instability.
Conclusion
A well-planned four-monitor setup can transform your workspace, boosting productivity and comfort. By following these guidelines, you can create a powerful and ergonomic multi-monitor environment suited to your needs.
